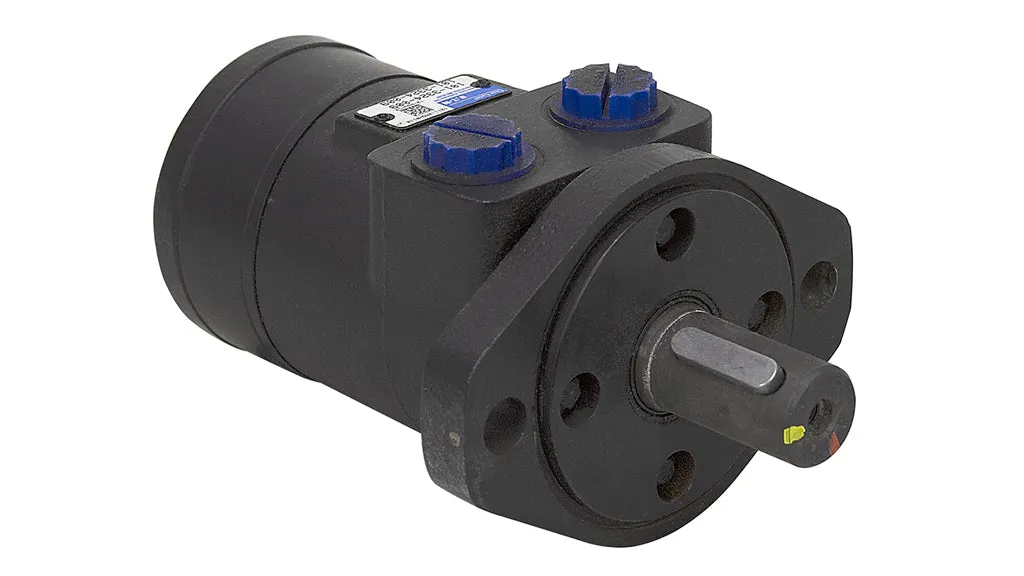

Char-Lynn Hydraulic Motor

Special order only. (Approx. Two weeks)

• Brand Eaton Char-Lynn
• Model 101-3324
• Family H Series
• Displacement 11.3 cu. in. / rev.
• Motor Type Geroler/Orbit Motor
• Rotation Reversible
• Pressure:
     1600 PSI cont.
     2150 PSI int.
• Torque:
     2343 in-lbs. cont.
     3151 in-lbs. int.
• Speed:
     243 RPM cont.
• Flow:
     15 GPM cont.
     20 GPM int.
• Mount 2 bolt SAE AA
• Pilot Dia. 3.25"
• Shaft 25mm x 2" long w/ 8mm keyway, tapped M8 x 1.25
• Ports SAE 10
• Case Drain None
• Size 7.93" x 5.21" x 3.81"
• Shpg. 16 lbs.
